Подробная информация о продукте:
|
| Форм-фактор: | QSFP28 | Тариф: | 100G |
|---|---|---|---|
| Длина волны: | CWDM-C | Температура: | 0-70°C |
| Тип кабеля: | SMF | Достигаемость: | 2km |
| Максимальный расход энергии: | < 3=""> | Соединитель: | MPO |
| Тип приемопередатчика: | SR4 | DOM: | Поддержка |
| Выделить: | 3.5W QSFP28 100G CWDM4,MPO QSFP28 100G CWDM4,SR4 100G QSFP28 Module |
||

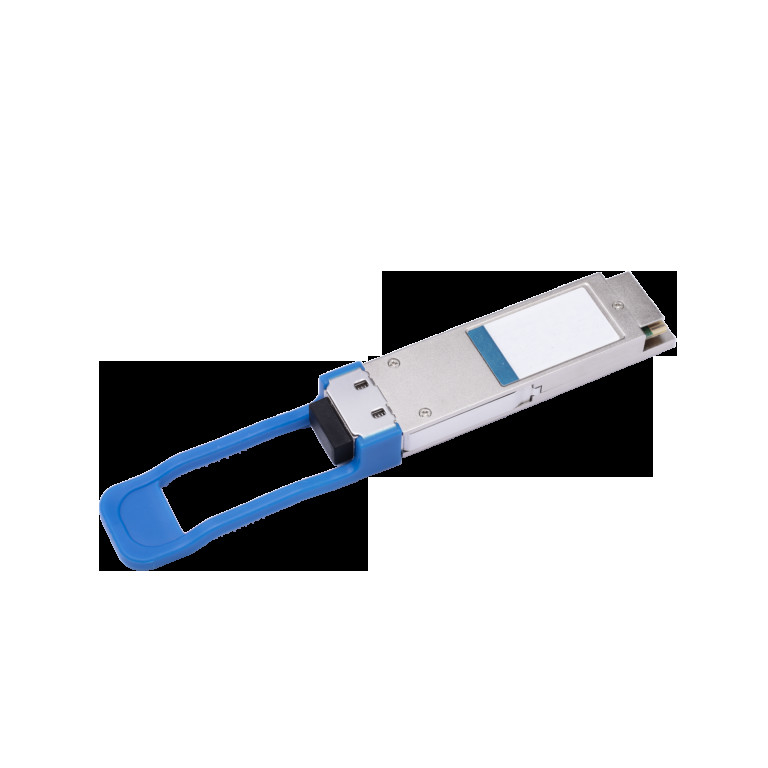

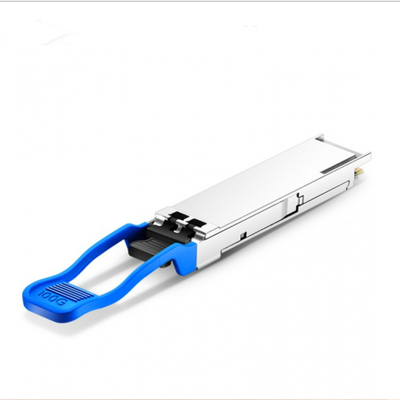

Compatible QSFP-100G-CWDM-C QSFP-28 100G-CWDM4 Transceiver SMF 2km Optical Module
QSFP28 100G QSFP-100G-CWDM-C
Part Number 740-061408
Speed 100 Gigabit Ethernet
Breakout Capable No
Transceiver Type QSFP28
Product Type Optical Transceiver
Connector Duplex LC
Monitoring Available Yes
Digital Optical Monitoring Yes
Standard: 100GBASE-CWDM4MSA compliance (SFF, for e.g. SFF-8665)
100G CWDM4 MSA Technical Specifications
2km Optical Specifications
Diagnostic supportYesSignaling rate, each lane25.78125 ± 100 ppmTransmitter wavelengths (range)
–1264.5 nm through 1277.5 nm
–1284.5 nm through 1297.5 nm
–1304.5 nm through 1317.5 nm
–1324.5 nm through 1337.5 nm
Transmitter output power, each lane (minimum)–6.5 dBm
Transmitter output power, each lane (maximum)2.5 dBm
Receiver input power, each lane (minimum)–11.5 dBm
Receiver input power, each lane (maximum)2.5 dBm
Cable type SMFCore size/cladding9/125 µm
Fiber grade SMF
Distance 2 km
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
