Подробная информация о продукте:
|
| Форм-фактор: | QSFP28 | Тариф: | 100G |
|---|---|---|---|
| Длина волны: | 1295 nm до 1325 nm | Температура: | 0-70°C |
| Тип кабеля: | многорежимное волокно | Достигаемость: | 500M |
| Максимальный расход энергии: | < 3=""> | Соединитель: | MPO |
| Тип приемопередатчика: | SR4 | DOM: | Поддержка |
| Выделить: | SMF QSFP28 100G PSM4,500m QSFP28 100G PSM4,PSM4 100G QSFP28 Module |
||

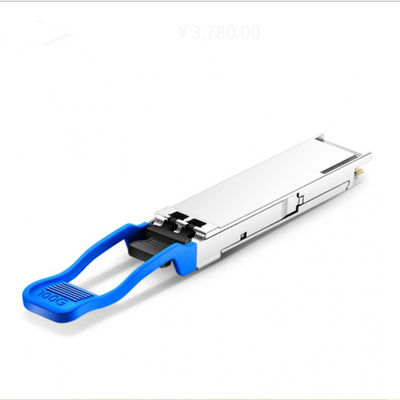

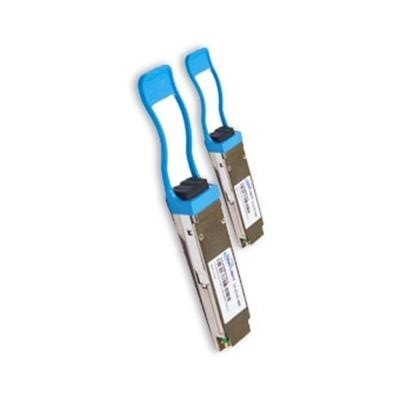

Compatible QSFP-100G-PSM4-T2 QSFP28 100G base PSM4 optics for up to 500m transmission over parallel SMF
QSFP28 100G base PSM4 optics for up to 500 m transmission over parallel SMF
Part Number 740-061406
Speed4 x 25 Gigabit Ethernet, 100 Gigabit Ethernet
Breakout Capable Yes
Breakout cables MTP-4LC-S1M, MTP-4LC-S3M, MTP-4LC-S5M, MTP-4LC-S10M can be used as break-out cables
Transceiver Type QSFP28
Product Type Optical Transceiver
Connector MPO-12
APCMonitoring
Available Yes
Digital Optical Monitoring Yes
Standard: 100G PSM4 MSA
Diagnostic support
YesSignaling rate, each lane25.78125 GBd +/- 100 ppm
Transmitter wavelengths (range)1295 nm through 1325 nm
Transmitter output power, each lane (minimum)–9.4 dBm
Transmitter output power, each lane (maximum)2.0 dBm
Receiver input power, each lane (minimum)–12.66 dBm
Receiver input power, each lane (maximum)2.0 dBm
Cable type SMF
Core size/cladding9/125 µmDistance500 m
Operating Temperature (range)0° C to 70° C
Storage temperature–40° C to 85° C
